The SFP '85' series is a range of standard laboratory pressure vessels intended to provide versatile platforms for high pressure experimentation. Standard pressure vessels are suitable for use with non corrosive liquids and gases, with variants offered to suit a range of alternative fluids and operating environments. Standard operating temperature range are 5°C to 80°C with variations and options on temperature including heating/cooling jackets and furnace modules.

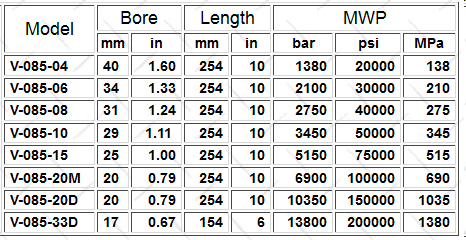

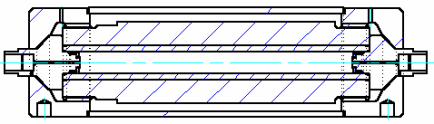

Vessel Shown is V-085-20D standard connections are 3/16" HP
Overall length 375mm (15")
Diameter (excluding heating cooling bosses) 100mm (4"). Heating/cooling jacket is optional. For full details of options contact SFP.

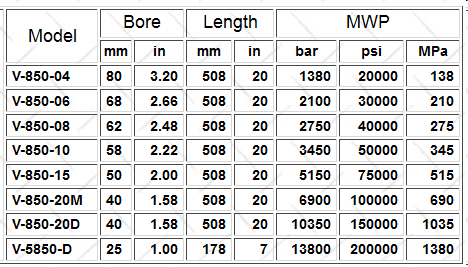

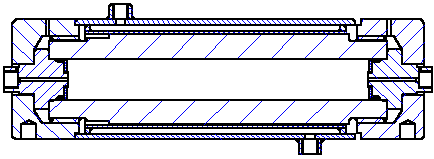

Vessel Shown is V-850-06 standard connections are 9/16" HP.
Overall length 750mm (30")
Diameter (excluding heating cooling bosses) 200mm (8"). Heating/cooling jacket is optional. For full details of options contact SFP.
Other vessels:
Medium - Ø75 -200mm / Ø3 - 8" - More details
Large - Ø200 to 1000+mm / Ø8" to 40"+ - More details
